How Are ATEX Fans Designed And Built?

SPECIFYING THE BEST ATEX FAN FOR YOUR APPLICATION

ATEX and IECEx clearly stipulate the requirements for explosion-proof fans – but that does not necessarily guarantee that all Ex-fans are made equal. Quality and consistency levels differ between Ex-fan manufacturers.

Safety is paramount in this important area of fan engineering. Failure is not an option so you need to choose your specialist Ex-fan supplier carefully. Technical expertise and extensive experience are critical.

How Are ATEX Fans Designed And Built?

SPECIFYING THE BEST ATEX FAN FOR YOUR APPLICATION

ATEX and IECEx clearly stipulate the requirements for explosion-proof fans – but that does not necessarily guarantee that all Ex fans are made equal. Quality and consistency levels differ between Ex fan manufacturers.

Safety is paramount in this important area of fan engineering. Failure is not an option – the human, economic and reputational costs of getting it wrong are unthinkable. So you need to choose your specialist Ex fan supplier carefully. Technical expertise and extensive experience are critical.

ATEX AND IECEX DIRECTIVE AND OTHER RELEVANT STANDARDS

ACI’s explosion-proof fans comply with the following directives and standards:

Governing Directives

ATEX 2014-34-EU – The European ATEX Product Directive.
2006/42/EC – The European Machinery Directive.
IECEx 02 – IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres.

Relevant standards

EN ISO 80079-36:2016(Part 36: Non-electrical equipment for explosive atmospheres – Basic method and requirements).
EN ISO 80079-37:2016 (Part 37: Non-electrical equipment for explosive atmospheres – Non-electrical type of protection constructional safety ‘c’, control of ignition sources ‘b’, liquid immersion ‘k’).
EN 14986:2017 (Design of fans working in potentially explosive atmospheres).

ACI’s explosion-proof fans comply with the following directives and standards:

Governing Directives

  • ATEX 2014-34-EU – The European ATEX Product Directive.
  • 2006/42/EC – The European Machinery Directive.
  • IECEx 02 – IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres.

Relevant Standards

  • EN ISO 80079-36:2016 (Part 36: Non-electrical equipment for explosive atmospheres – Basic method and requirements).
  • EN ISO 80079-37:2016 (Part 37: Non-electrical equipment for explosive atmospheres — Non-electrical type of protection constructional safety ‘c’, control of ignition sources ‘b’, liquid immersion ‘k’).
  • EN 14986:2017 (Design of fans working in potentially explosive atmospheres).

Find out more here about ATEX directives, hazardous area classifications and device groups.

HOW EX FANS PREVENT FIRES AND EXPLOSIONS IN HAZARDOUS ENVIRONMENTS

There are various ways in which the design and construction of ATEX fans helps to ensure safety in hazardous environments containing potentially explosive gas or dust…

EXPLOSION-PROOF CONSTRUCTION

ATEX fans are designed and built to be explosion-proof. ACI produces robust designs with reliable impeller locking methods for the power of the motor used. Correct liner materials prevent sparks or hot spots from forming in the unlikely event of an impeller becoming loose during operation, mitigating the risk of an ignition.

CONDUCTIVE AND ANTI-STATIC COATINGS

Conductive and anti-static coatings play a vital role in enhancing the safety of ATEX fans, preventing the build-up of static electricity – a significant concern in hazardous environments.

These coatings help to dissipate any static charges that may accumulate on the fan’s surfaces. This minimises the risk of sparks that could potentially ignite flammable atmospheres.

Conductive coatings are designed to create surfaces that do not generate sparks. This is particularly important in environments where even a small spark could lead to a catastrophic explosion. By ensuring that the fan’s surfaces are non-sparking, the risk of ignition is significantly reduced.

Conductive and anti-static coatings ensure that ATEX fans can operate safely in hazardous environments without introducing additional risks. This is crucial in industries such as chemical processing, oil/gas and mining, where the potential for explosive atmospheres is high.

SPECIALISED MOTORS

Motors used in ATEX fans are designed to minimise the risk of ignition. Non-sparking, flameproof, dust-tight motors are used in the fan design, based on the environment in which the unit is destined to operate.

Flameproof motors ensure that flames are not emitted from the motor during an internal ignition. Non-sparking motors are built to prevent arcs and sparks from forming internally.

DUST AND GAS PROTECTION

ATEX fans are designed to operate safely in environments where flammable gases, vapours, or combustible dust may be present. The correct fan assembly T ratings for both gas and dust are applied based on the ignition temperature of the gas or dust present in the environment (as advised by the customer at the quotation stage).

Motor thermistors are often present. These ensure the temperature of the motor does not exceed the stated T rating.

Inlet filters can be used to limit the ingress of dust into the fan. This dust could otherwise build up on the impeller, causing an imbalance – leading in turn to excessive vibration and subsequent premature component failure.

ACI explostion-proof fan designed for ATEX and IECEx certification

CHOOSE YOUR FAN

Search for industrial fans using our product selector

MATERIALS AND SPECIALIST CONSTRUCTION TECHNIQUES

At ACI, our engineers are meticulous in their design, construction and quality control inspection of ATEX fans – going above and beyond the methods employed by some other manufacturers.

R

Impeller clearances are checked during the build to ensure they comply with the minimum requirements specified on the drawings. Correct impeller mounting is achieved according to the power output of the motor. Appropriate liner material pairings are chosen to suit the environment to ensure that sparking or hot spots cannot be generated in the unlikely event of impeller contact.

R

Suitable construction materials are selected to ensure a chemical ignition source – such as a Thermite reaction – is not present. We also ensure that a galvanic couple is not present. This helps to prevent premature component failure.

R

Stress calculations are performed on impellers to ensure they can withstand the operating speeds for which they are intended. Temperature rises through the equipment are analysed to ensure the temperature class of the equipment is not affected. Customer fan process temperatures are evaluated to ensure the correct temperature class is applied to the equipment.

R

Ductile materials are selected where heat dissipation is required. Heat spinners are used to deflect elevated process temperatures away from the motor.

R

Paint data sheets are checked to ensure that chemical ignition sources cannot be introduced. Where paints are used over a certain thickness, warnings are added to the fan to instruct the end user of the potential for static build-up – and how to stop this from happening. Where plastics are used, similar warnings are added for the same reasons.

R

Vibration monitoring (as required by the standards) is offered for Cat 2D equipment.

Explosion Proof Fan known as ATEX fan
Explosion Proof Fan
ATEX certified fan on a black pedestal
R

Anti-static filter media are employed to prevent static build-up on the inlet of the fan.

R

PTFE seals are added to the inlet plates and/or inspection hatches. It is important to allow access for cleaning to prevent dangerous dust build-ups.s.

R

Anti-static hose is used for any flexible connections. Grounding points are added to any isolated metalwork, including motor pedestals with anti-vibration mounts and also flexible connection flanges.

R

Full earth bond continuity checks are performed across the extremities of every blower before it leaves ACI.

R

Consideration is given to the impact on the environment when selecting suitable materials. More environmentally friendly options are used whenever possible.

R

A comprehensive user manual is available. It highlights all risks, maintenance aspects and end-user responsibilities – including the Specific Conditions of Use based on the certification limitations.

MATERIALS AND SPECIALIST CONSTRUCTION TECHNIQUES

At ACI, our engineers are meticulous in their design, construction and quality control inspection of ATEX fans – going above and beyond the methods employed by some other manufacturers.

Impeller clearances are checked during the build to ensure they comply with the minimum requirements specified on the drawings. Correct impeller mounting is achieved according to the power output of the motor.  Appropriate liner material pairings are chosen to suit the environment to ensure that sparking or hot spots cannot be generated  in the unlikely event of impeller contact.

Suitable construction materials are selected to ensure a chemical ignition source – such as a Thermite reaction – is not present. We also ensure that a galvanic couple is not present. This helps to prevent premature component failure.

Stress calculations are performed on impellers to ensure they can withstand the operating speeds for which they are intended. Temperature rises through the equipment are analysed to ensure the temperature class of the equipment is not affected. Customer fan process temperatures are evaluated to ensure the correct temperature class is applied to the equipment.

Ductile materials are selected where heat dissipation is required. Heat spinners are used to deflect elevated process temperatures away from the motor.

Vibration monitoring (as required by the standards) is offered for Cat 2D equipment.

Paint data sheets are checked to ensure that chemical ignition sources cannot be introduced.  Where paints are used over a certain thickness, warnings are added to the fan to instruct the end user of the potential for static build-up – and how to stop this from happening. Where plastics are used, similar warnings are added for the same reasons.

Anti-static filter media are employed to prevent static build-up on the inlet of the fan.

PTFE seals are added to the inlet plates and/or inspection hatches. It is important to allow access for cleaning to prevent dangerous dust build-ups.

Anti-static hose is used for any flexible connections. Grounding points are added to any isolated metalwork, including motor pedestals with anti-vibration mounts and also flexible connection flanges.

Full earth bond continuity checks are performed across the extremities of every blower before it leaves ACI.

Consideration is given to the impact on the environment when selecting suitable materials. More environmentally friendly options are used whenever possible.

A comprehensive user manual is available. It highlights all risks, maintenance aspects and end-user responsibilities – including the Specific Conditions of Use based on the certification limitations.

Explosion Proof Fan
Air Control Industries

HOW RIGOROUS PART TRACEABILITY, TESTING AND CERTIFICATION GUARANTEE ATEX COMPLIANCE

ACI uses a notified body for its certification; this is currently the CSA Group. We apply for certification once a product has been fully designed in accordance with the appropriate standards.

Schematic drawings detail the fan types covered. They include any adaptations, accessories, clearances and many other details relating to how the requirements of the applicable standards have been covered.

Ignition Hazard Assessments (IHAs) are performed on any new equipment that is added to our certificate. The notified body issues the certificate once all pertinent points have been satisfied.

Generally, once the certificate has been acquired there is no further need to apply again.  If anything needs to change in relation to what is held on the drawings or the detail on the certificate, a variation request is submitted to the notified body and a case is opened to ensure this is done officially and correctly.

ACI currently maintains three certificates: ATEX, IECEx and UKEX. These certificates have expiry dates and require renewal periodically. The CSA Group visits to audit our processes between renewal dates.

There is full traceability of all materials used in the construction of the equipment. Material certificates – such as those for the metals used in the fabrication of a fan case – are held at ACI.

Full motor documentation is forwarded on to the end customer for reference, along with user manuals of any other suppliers’ integrated equipment.

We designate separate part numbers to our stock for use in Ex builds to ensure that non-Ex parts are kept separate. This stops parts that do not have full material certification from entering an Ex build.

We have also invested heavily in a segregated Ex build area, along with an adjoining segregated store specifically for parts for use in Ex builds.

Watch our video

Find out how to get the best out of our Fan Selector Tool

ATEX TRAINING AT ACI

Engineering and quality teams at ACI have undergone extensive ATEX training to meet the latest certification update.

ACI Quality Health Safety Environment (QHSE) Manager Lee Dreger and Design Engineer Mark Tinkler recently underwent Ex refresher training with the Southampton Engineering Training Association (SETA).

This training included:

Legislative obligations and responsibilities
Customers obligations
ATEX ‘workplace’ Directive 1999/92/EC

Dangerous Substances and Explosive Atmospheres Regulations 2002 (DSEAR) assessment
Essential Health and Safety Requirements (EHSRs)
Markings used on Ex equipment (new and legacy)
Construction materials and techniques

Involved risks
Ex zoning diagrams
Temperature calculations for gases, dust layers and clouds and the assignment of temperature class T ratings

Flash points and ignition temperatures of gases
Upper and lower explosive limits of gases
Protection concepts
Site maintenance schedules/requirements.

Aerial view of modern water cleaning facility at urban wastewater treatment plant. Purification process of removing undesirable chemicals, suspended solids and gases from contaminated liquid

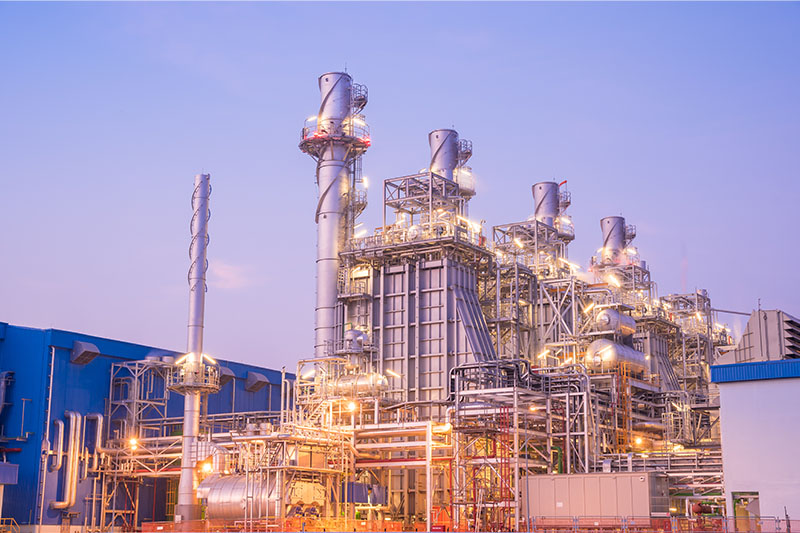

Outside view of a petroleum refinery at sunset.
During the Ex update, they also had a Technical Information Service (TIS) briefing with the CSA Group to learn more product-specific information.  Here they were able to work closely with the notified body.

From this knowledge, Mark Tinkler devised a targeted departmental training program focusing on the key information relevant to each department. This was rolled out across the teams in sales, technical, purchasing, production, electrical test and goods in.

Mark also carried out significant research, reviewing the applicable standards to ensure that ACI products are fully up to date. Internal supporting procedures were updated, along with the customer data collection form for Ex sales, reflecting the new requirements on the latest certificates.

ATEX TRAINING AT ACI

Engineering and quality teams at ACI have undergone extensive ATEX training to meet the latest certification update.

ACI Quality Manager Lee Dreger and Design Engineer Mark Tinkler recently underwent Ex refresher training with Southampton Engineering Training Association (SETA). This training included:

  • Legislative obligations and responsibilities
  • Customers obligations
  • ATEX ‘workplace’ Directive 1999/92/EC
  • Dangerous Substances and Explosive Atmospheres Regulations 2002 (DSEAR) assessment
  • Essential Health and Safety Requirements (EHSRs)
  • Markings used on Ex equipment (new and legacy)
  • Construction materials and techniques
  • Involved risks
  • Ex zoning diagrams
  • Temperature calculations for gases, dust layers and clouds and the assignment of temperature class T ratings
  • Flash points and ignition temperatures of gases
  • Upper and lower explosive limits of gases
  • Protection concepts
  • Site maintenance schedules/requirements.

During the Ex update, they also had a Technical Information Service (TIS) briefing with the CSA Group to learn more product-specific information. Here they were able to work closely with the notified body.

From this knowledge, Mark Tinkler devised a targeted departmental training program focusing on the key information relevant to each department. This was rolled out across the teams in sales, technical, purchasing, production, electrical test and goods in.

Mark also carried out significant research, reviewing the applicable standards to ensure that ACI products are fully up to date. Internal supporting procedures were updated, along with the customer data collection form for Ex sales, reflecting the new requirements on the latest certificates.
